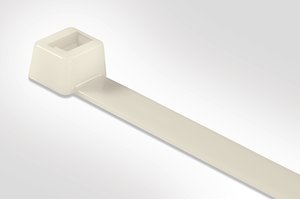

| TE | 111-00784 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LK2A Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Inside serrated cable ties for a strong hold around bundles Various materials and sizes are available High tensile strength with very low insertion force Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LK2A-PA66HS-NA |
| Product Family | LK-Series |
| Product Group | Cable ties in-between size to T-Series |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 70.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 270mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 4.8mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +110 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387150407.0 |
