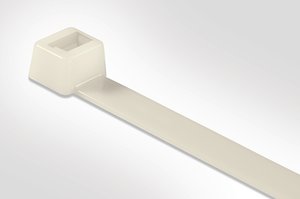

| TE | 111-00796 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LK5 Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Inside serrated cable ties for a strong hold around bundles Various materials and sizes are available High tensile strength with very low insertion force Easy application either manually or with an application tool |
| Application Tool | MK9P, EVO9HT |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LK5-PA66HS-NA |
| Product Family | LK-Series |
| Product Group | Cable ties in-between size to T-Series |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 145mm |
| Bundle ∅ min. | 4.0mm |
| Length (L) | 541mm |
| Min.Tensile Strength | 1115N |
| Thickness (T) | 2.0mm |
| Width (W) | 13.0mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +110 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387153408.0 |
