| TE | 109-00160 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Q18L Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Open lock head for quick and easy insertion Integrated pre-locking function More than 25 % faster in application Inside serration for a strong hold around bundles Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7, EVO7SP |
| Colour | Yellow (YE) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Q18L-PA66-YE |
| Product Family | Q-ties |
| Product Group | Cable Ties with open head |
| Releasable Closure (Yes/No) | No |

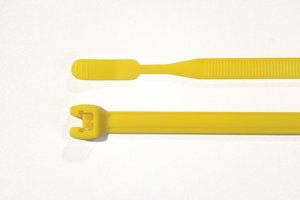

| Short Description | Cable Tie with open head 195x2.6 yellow |
| 颜色 | Yellow (YE) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 195mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026412887.0 |
| Packaging 1 - Height (m) | 0.01m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00041m³ |
| Packaging 1 - Weight (kg) | 0.030001kg |
| Packaging 1 - Width (m) | 0.14m |
