| TE | 109-00144 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Q120M Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Heat stabilised cable tie available in a wide range of sizes Open lock head for quick and easy insertion Integrated pre-locking function More than 25 % faster in application Inside serration for a strong hold around bundles Easy application either manually or with a processing tool Higher temperature resistance up to +105 °C |
| Application Tool | EVOcut, MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, EVO9, EVO9HT, MK9SST |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Q120M-PA66HS-NA |
| Product Family | Q-ties |
| Product Group | Cable ties with open head |
| Releasable Closure (Yes/No) | No |

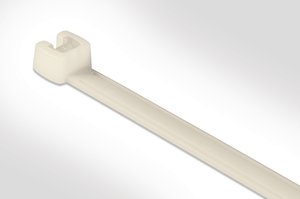

| Short Description | Cable Tie with open head 520x7.7 HS-natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 130mm |
| Bundle ∅ min. | 6.0mm |
| Length (L) | 520mm |
| Min.Tensile Strength | 530N |
| Thickness (T) | 1.8mm |
| Width (W) | 7.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL OCD link | Link |
| UL-File Number | E65344 |
| GTIN-13 / EAN | 4031026412726.0 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.68m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00612m³ |
| Packaging 1 - Weight (kg) | 0.550001kg |
| Packaging 1 - Width (m) | 0.2m |
