| TE | 108-00052 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to X250R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Inside serrated cable tie High tensile strength around cable bundles Smooth, rounded head design Space saving solution Improved ergonomic design Provides a secure fastening with no lateral movement |
| Application Tool | MK9P, MK12, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | X250R-PA66W-BK |
| Product Family | X-Series |
| Product Group | Cable ties with smart design |
| Releasable Closure (Yes/No) | No |

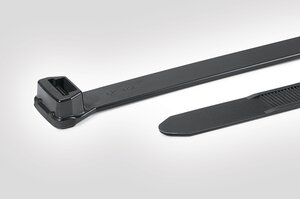

| Short Description | Cable Tie 535x13 mm, UV-resistant, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 150mm |
| Bundle ∅ min. | 12mm |
| Length (L) | 535mm |
| Min.Tensile Strength | 1115N |
| Thickness (T) | 1.9mm |
| Width (W) | 13mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | ANSI/UL 62275, CAN/CSA-C22.2 no. 62275 |
| UL OCD link | Link |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660342608.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.73m |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00657m³ |
| Packaging 1 - Weight (kg) | 0.738651kg |
| Packaging 1 - Width (m) | 0.18m |
