112-52104

类　　型：: 扎带

品　　牌：: 海尔曼太通全球(HellermannTyton)

颜　　色：: Natural (NA)

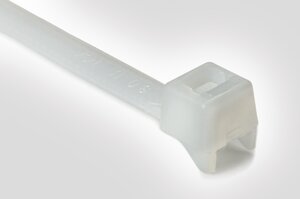

产品描述：: Curved design of head offers a good fit to the bundle Inside serration for a positive hold onto bundles Easy application either manually or with a processing tool

TE	112-52104
分类	扎带
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CTT60R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products
描述	Curved design of head offers a good fit to the bundle Inside serration for a positive hold onto bundles Easy application either manually or with a processing tool
Application Tool	MK3PNSP2, EVOcut, MK7P, MK9P, MK9P w/ Upper air, MK20, MK21, EVO7, EVO7SP, EVO9, EVO9HT
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	CTT60R-PA66-NA
Product Family	CTT-Series natural and black
Product Group	Cable ties for hose and gaiter
Releasable Closure (Yes/No)	No
Short Description	Cable Tie for hose and gaiter 205x4.7 PA66 natural
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	45.0mm
Bundle ∅ min.	1.5mm
Length (L)	203.2mm
Min.Tensile Strength	267.0N
Thickness (T)	1.2mm
Width (W)	4.7mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	UL
UL OCD link	Link Link Link Link
UL-File Number	E64139
GTIN-13 / EAN	4031026312248.0
Packaging 1 - Height (m)	0.038m
Packaging 1 - Length (m)	0.33m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00226m³
Packaging 1 - Weight (kg)	0.140001kg
Packaging 1 - Width (m)	0.18m
