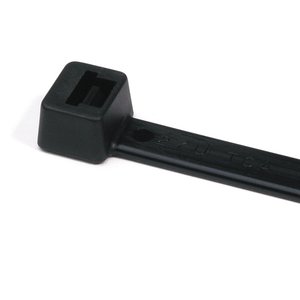

| TE | 111-01398 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T120R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | EVOcut, MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, EVO9, EVO9HT |
| Colour | Halogen Orange (HNOG) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| PART DESCRIPTION | T120R-PA66-OG |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| 颜色 | Halogen Orange (HNOG) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 105.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535N |
| Thickness (T) | 1.9mm |
| Width (W) | 7.6mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 5022660340321.0 |
