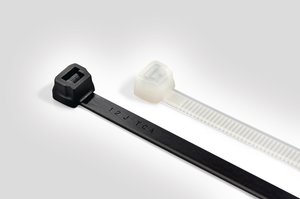

| TE | 107-00007 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Z40R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | High vibration stability and impact resistance Natural and black cable ties available in different sizes Made from 100 % high quality plastic, allows for good recycling Inside serration for a strong hold around bundles Easy application either manually or with a processing tool Heat stabilised and UV-resistant material (PA66HSW) for higher temperatures up to +110 °C |
| Application Tool | MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Z40R-PA66-NA |
| Product Family | Z-Series |
| Product Group | High vibration stability and impact resistant cable ties |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Variant | Inside Serrated |
| Bundle ∅ max. | 36mm |
| Bundle ∅ min. | 1mm |
| Length (L) | 151mm |
| Min.Tensile Strength | 180N |
| Thickness (T) | 1.1mm |
| Width (W) | 3.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | IEC 62275:2006 |
| GTIN-13 / EAN | 4944387108736.0 |
| Packaging 1 - Height (m) | 0.022m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0005m³ |
| Packaging 1 - Weight (kg) | 0.0724kg |
| Packaging 1 - Width (m) | 0.125m |
