| TE | 107-00006 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Z80I Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

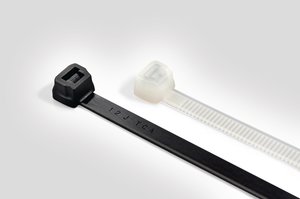

| 描述 | High vibration stability and impact resistance Natural and black cable ties available in different sizes Made from 100 % high quality plastic, allows for good recycling Inside serration for a strong hold around bundles Easy application either manually or with a processing tool Heat stabilised and UV-resistant material (PA66HSW) for higher temperatures up to +110 °C |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Z80I-PA66HSW-BK |
| Product Family | Z-Series |
| Product Group | High vibration stability and impact resistant cable ties |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Variant | Inside Serrated |
| Bundle ∅ max. | 80mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 301mm |
| Min.Tensile Strength | 355N |
| Thickness (T) | 1.3mm |
| Width (W) | 5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| Operating Temperature - °C | -40 °C to +110 °C |
| Specifications | IEC 62275 |
| GTIN-13 / EAN | 4944387108729.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.38m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00198m³ |
| Packaging 1 - Weight (kg) | 0.226001kg |
| Packaging 1 - Width (m) | 0.13m |
