| TE | 115-40700 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to REL140 Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Similar products |

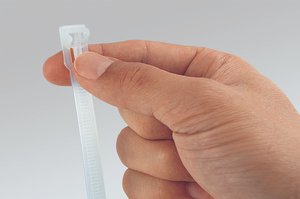

| 描述 | Releasable and reusable cable tie for medium-weight loads Extremely easy-to-operate release mechanism Opens simply and quickly with only one hand Also available in PA66W for outdoor applications REL cable ties have their serration on the inside |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | REL140-PA66-BK |
| Product Family | REL-Series |
| Product Group | Cable ties inside serrated with kickdown lever |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 6.0mm |
| Length (L) | 150mm |
| Min.Tensile Strength | 200N |
| Width (W) | 7.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, CAN/CSA-C22.2 no. 62275 |
| UL OCD link | Link |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660314995.0 |
