| TE | 131-75819 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT250S Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Similar products |

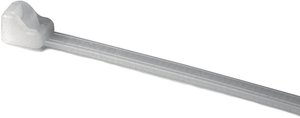

| 描述 | Releasable and reusable cable tie Suitable for larger and/or heavier bundles Eyelet allows excess tail to be tucked neatly away Available in black and natural colour Extended trigger for simple and quick release of ties Protected trigger to avoid accidental release RT250 cable ties are inside serrated |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | RT250S-PA66-NA |
| Product Family | RT250-Series |
| Product Group | Cable ties inside serrated with tuckaway |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Cable Tie with Tuckaway 516x12.5 mm PA66 natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 12.0mm |
| Length (L) | 230.0mm |
| Min.Tensile Strength | 1115.0N |
| Thickness (T) | 1.9mm |
| Width (W) | 12.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | UL-ZODZ2.E64139 |
| UL OCD link | Link Link Link Link |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 4031026115740.0 |
| Packaging 1 - Height (m) | 0.043m |
| Packaging 1 - Length (m) | 0.602m |
| Packaging 1 - Qty | 25.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00365m³ |
| Packaging 1 - Weight (kg) | 0.165001kg |
| Packaging 1 - Width (m) | 0.141m |
