| TE |
157-00275 |
| 分类 |
扎带 |
| 品牌 |
海尔曼太通全球(HellermannTyton) |
| 类型 |
Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RM6OSSM Competences Cable holder |
| 描述 |

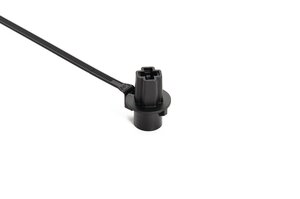

Standoff design keeps bundles away from mounting surface and obstructions. Low-profile outside serrated tie with grip rails keeps harnesses and wires protected and secure. Four-pawl, three-tooth design provides low insertion force and delivers outstanding stud retention. Mount can be used in a wide variety of applications including 5 mm and 6 mm bolts, as well as weld studs. Designed for quick and easy assembly by hand without the need for tools. |
| Colour |
Black (BK) |
| Identification Plate Position |
none |
| Pack Cont. |
1000pcs. |
| Package Quantity per |
carton |
| PART DESCRIPTION |
T50RM6OSSM-PA66HIRHS-BK |
| Product Family |
Offset Stud Mount Ties |
| Product Group |
Stud Mount Cable Ties |
| Releasable Closure (Yes/No) |
No |
| 颜色 |
Black (BK) |
| Tie Closure |
plastic pawl |
| Variant |
Outside Serrated |
| Bundle ∅ max. |
50.0mm |
| Bundle ∅ min. |
5.0mm |
| Length (L) |
223.52mm |
| Min.Tensile Strength |
225N |
| Width (W) |
25.0mm |
| ELV compliant (Article 4 - 2) |
YES |
| Flammability |
UL 94 HB |
| Halogenfree |
Yes |
| Hazardous good |
No |
| Material |
Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C |
-40 °C to +105 °C |
| GTIN-13 / EAN |
4031026568805.0 |
| Packaging 1 - Height (m) |
0.203m |
| Packaging 1 - Length (m) |
0.6m |
| Packaging 1 - Qty |
1500.0 |
| Packaging 1 - Type |
bag |
| Packaging 1 - Volume (m³) |
0.04762m³ |
| Packaging 1 - Weight (kg) |
7.500001kg |
| Packaging 1 - Width (m) |
0.391m |
