| TE | 151-01591 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to QM20APT-I Competences Self-Adhesive cable tie mounts Similar products |

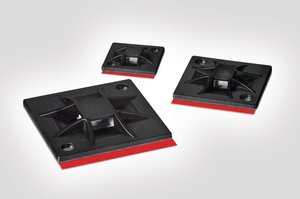

| 描述 | Q-mounts with homogeneous system of acrylic adhesive Perfect for combination with Q-ties Very good initial adhesion, increases with time Innovative fixing solution for high and low energy surfaces Q-Mount base locks Q-tie in vertical position, means the hands are free to apply cables |
| Colour | Natural (NA) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | QM20APT-I-PA66-NA |
| Product Family | SolidTack-Series QM |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Adhesive Cable Tie Mount 20x20 mm natural |
| 颜色 | Natural (NA) |
| Length (L) | 20.0mm |
| Width (W) | 20.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-412-3966 |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026562711.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.08841kg |
| Packaging 1 - Width (m) | 0.265m |
