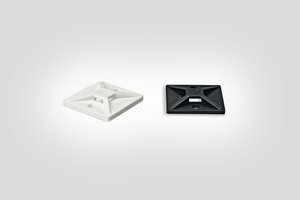

| TE | 151-03099 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MB4 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Screwable or self-adhesive versions Simple to install with a screw or bolt Excellent security, particularly in areas of high vibration Maximum surface area with adhesive to achieve high pull-off force 4-way entry for cable tie for quicker and more flexible installation |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | MB4-PA666V0-BK |
| Product Family | MB-Series square design, screwable |
| Product Group | Screw fixing cable tie mounts |
| 颜色 | Black (BK) |
| Length (L) | 28.5mm |
| Width (W) | 28.5mm |
| Flammability | UL 94 V0, halogen free, Limited Fire Hazard, low generation of toxic gases and corrosive acid, low smoke generation |
| Halogenfree | Yes |
| Material | Polyamide 6.6 + Polyamide 6 V0 (PA66/6V0) |
| Operating Temperature - °C | -40 °C to +120 °C |
| Specifications | ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017 |
| GTIN-13 / EAN | 4031026633718.0 |
