253172
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 253172 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 253172 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 253172 阿雷蒙 |

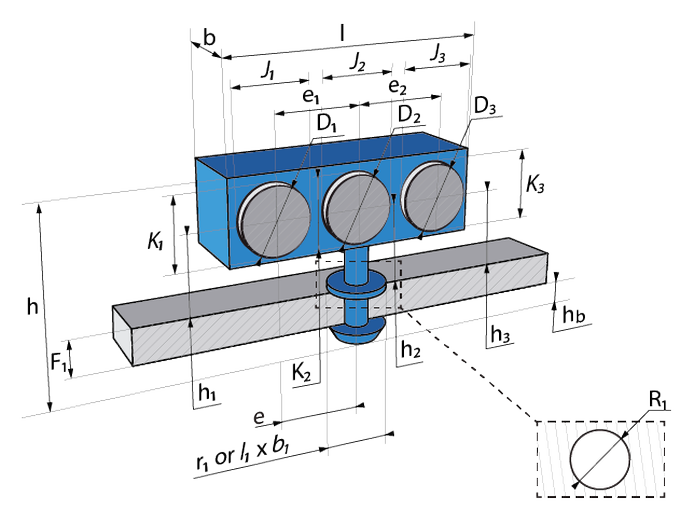

b - Width | 12 |
e - Mounting axle to furthest housing center | 10 |
h - Height | 35.6 |
h1 - Height | 8.5 |
hb - Height below support | 7 |
l - Length | 34.9 |
lxb - Length x Width | - |
r1 - Contact Diameter | 8 |
D1 - Tube or Cable Diameter | 9-10.5 |
F1 - Thickness | 2.9-3.1 |
R1 - Hole Diameter | 7.9-8.1 |
e1 - Center to Center distance | 10 |
D2 - Tube or Cable Diameter | 9-10.5 |
J1 - Width of housing | 12 |
J2 - Width of housing | 12 |
K1 - Height of housing | 8.5-15 |
K2 - Height of housing | 12-16 |
h2 - Height | 15 |
e2 - Center to Center distance | 10 |
h3 - Height | 8.5 |
D3 - Tube or Cable Diameter | 9-10.5 |
J3 - Width of housing | 12 |
K3 - Height of housing | 8.5-15 |
J1xK1 - Width of housing x Height of housing | 12 x 8.5-15 |
J2xK2 - Width of housing x Height of housing | 12 x 12-16 |
