249219
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 249219 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 249219 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 249219 阿雷蒙 |

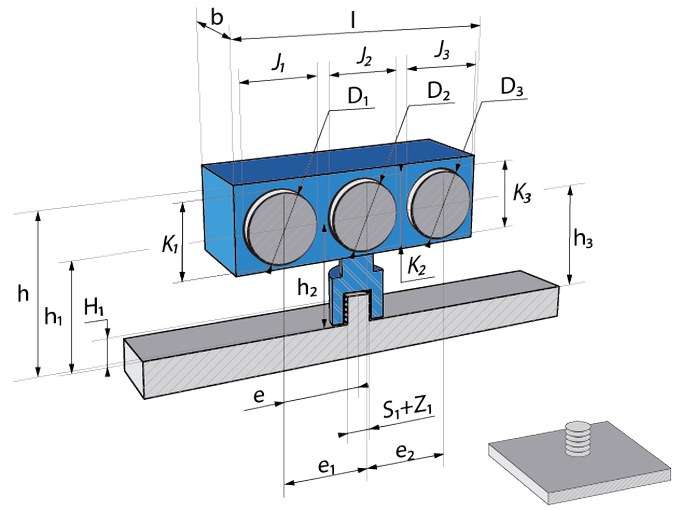

b - Width | 12 |
e - Mounting axle to furthest housing center | 11.6 |
h - Height | 21.7 |
h1 - Height | 9.7-12.2 |
l - Length | 51 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 8-11 |
e1 - Center to Center distance | 22.2 |
D2 - Tube or Cable Diameter | 4.8-8 |
J1 - Width of housing | 8.2-11.2 |
J2 - Width of housing | 5-8.5 |
S1 - Screw Specification | T5 Stud |
h2 - Height | 7.8-9.6 |
e2 - Center to Center distance | 13.4 |
h3 - Height | 7.8 |
D3 - Tube or Cable Diameter | 5-5.2 |
H1 - Support height | 14 |
Z1 - Stud Size | 5 |
