249155
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 249155 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 249155 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 249155 阿雷蒙 |

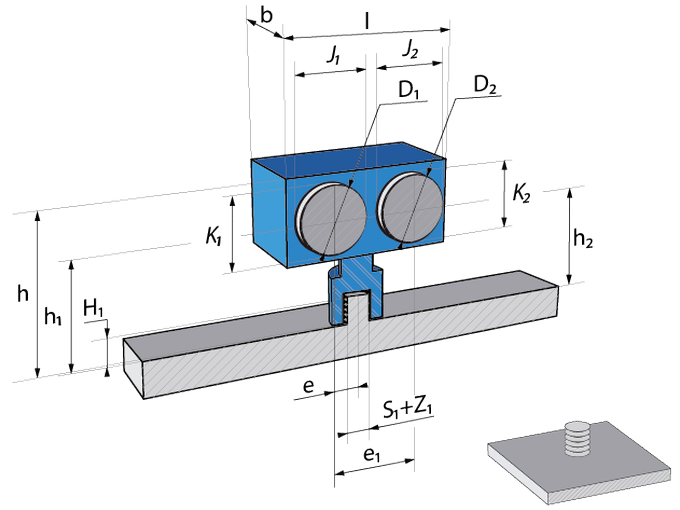

b - Width | 10 |
b1 - Width | 10 |
e - Mounting axle to furthest housing center | 21 |
h - Height | 36.4 |
h1 - Height | 16.5 |
l - Length | 69.8 |
l1 - Length | 39 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 18-21.4 |
e1 - Center to Center distance | 42 |
D2 - Tube or Cable Diameter | 18-21.4 |
S1 - Screw Specification | M5 x 0,80 |
h2 - Height | 16.5 |
l1xb1 - Length x Width | 39 x 10 |
S2 - Screw Specification | M6 x 1,00 |
S3 - Screw Specification | T5 Stud |
S4 - Screw Specification | T6 Stud |
