249150
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 249150 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 249150 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 249150 阿雷蒙 |

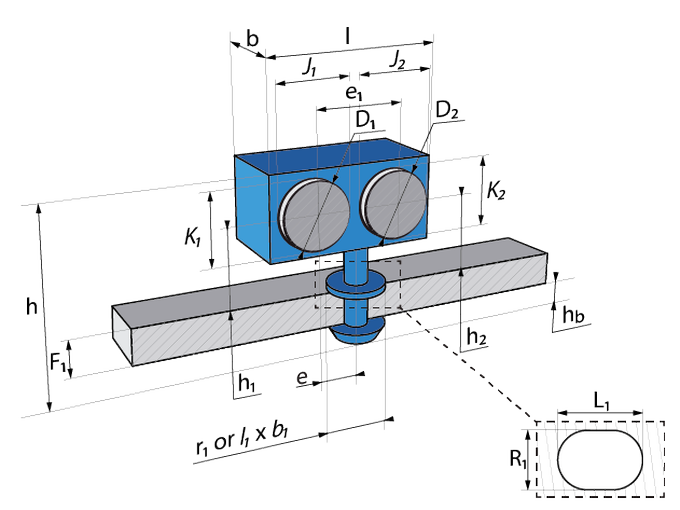

b - Width | 15 |
b1 - Width | 15 |
e - Mounting axle to furthest housing center | 29.5 |
h - Height | 54 |
h1 - Height | 25.2 |
hb - Height below support | 8.3-11.7 |
l - Length | 106.3 |
l1 - Length | 30 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 33-37 |
F1 - Thickness | 0.6-4 |
R1 - Hole Diameter | 6-7 |
e1 - Center to Center distance | 59 |
D2 - Tube or Cable Diameter | 33-37 |
h2 - Height | 25.2 |
l1xb1 - Length x Width | 30 x 15 |
L1 - Hole Length | 11.7-13 |
L1xR1 - Hole Length x Hole Diameter | 11.7-13 x 6-7 |
R1xL1 - Hole Diameter x Hole Length | 6.2-6.4 x 12.2-12.4 |
