242816
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 242816 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 242816 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 242816 阿雷蒙 |

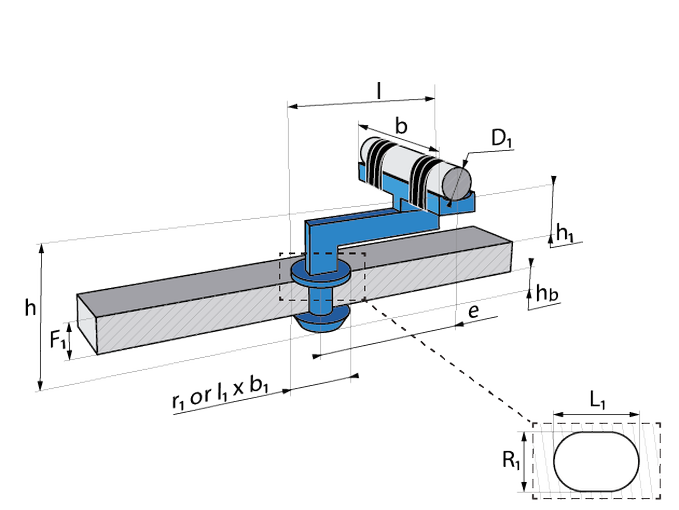

b - Width | 54.3 |
b1 - Width | 16 |
e - Mounting axle to furthest housing center | 46.3 |
h - Height | 14.7 |
hb - Height below support | 4.4-6.8 |
l - Length | 50 |
l1 - Length | 22 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 20 min |
F1 - Thickness | 0.6-3 |
R1 - Hole Diameter | 6.1-6.3 |
l1xb1 - Length x Width | 22 x 16 |
L1 - Hole Length | 12.1-12.3 |
L1xR1 - Hole Length x Hole Diameter | 12.1-12.3 x 6.1-6.3 |
R1xL1 - Hole Diameter x Hole Length | 6.1-6.3 x 12.1-12.3 |
bta1 - Width of tape-on | 12.8-13.8 |
