239525
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 239525 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 239525 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 239525 阿雷蒙 |

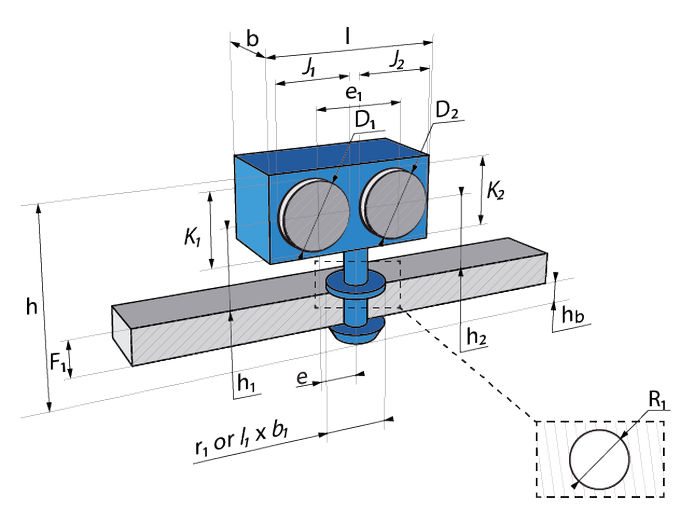

b - Width | 17 |
b1 - Width | 10.5 |
e - Mounting axle to furthest housing center | 22.2 |
h - Height | 40 |
h1 - Height | 12.8 |
hb - Height below support | 12 |
l - Length | 56.4 |
l1 - Length | 10.5 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 9.97-12.7 |
F1 - Thickness | 2.75-3.25 |
R1 - Hole Diameter | 8.7-9.2 |
e1 - Center to Center distance | 11.1 |
D2 - Tube or Cable Diameter | 9.97-12.7 |
J1 - Width of housing | 9.97-12.7 |
J2 - Width of housing | 9.97-12.7 |
K1 - Height of housing | 9.97-12.7 |
K2 - Height of housing | 9.97-12.7 |
h2 - Height | 12.8 |
l1xb1 - Length x Width | 10.5 x 10.5 |
J1xK1 - Width of housing x Height of housing | 9.97-12.7 x 9.97-12.7 |
J2xK2 - Width of housing x Height of housing | 9.97-12.7 x 9.97-12.7 |
