233615
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 233615 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 233615 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 233615 阿雷蒙 |

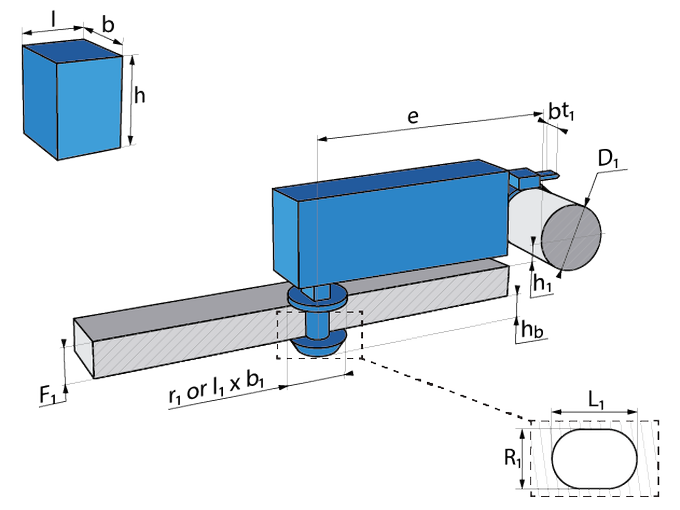

b - Width | 21 |
b1 - Width | 16 |
bt1 - Tie Width | 7.3 |
e - Mounting axle to furthest housing center | 16 |
h - Height | 36 |
h1 - Height | 21.5 |
hb - Height below support | 5.3-7.25 |
l - Length | 157.6 |
l1 - Length | 21 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 3-25 |
F1 - Thickness | 0.65-2.6 |
R1 - Hole Diameter | 7-7.2 |
l1xb1 - Length x Width | 21 x 16 |
L1 - Hole Length | 12-12.2 |
L1xR1 - Hole Length x Hole Diameter | 12-12.2 x 7-7.2 |
R1xL1 - Hole Diameter x Hole Length | 7-7.2 x 12-12.2 |
