当前位置: 首页>产品>908-115-A01

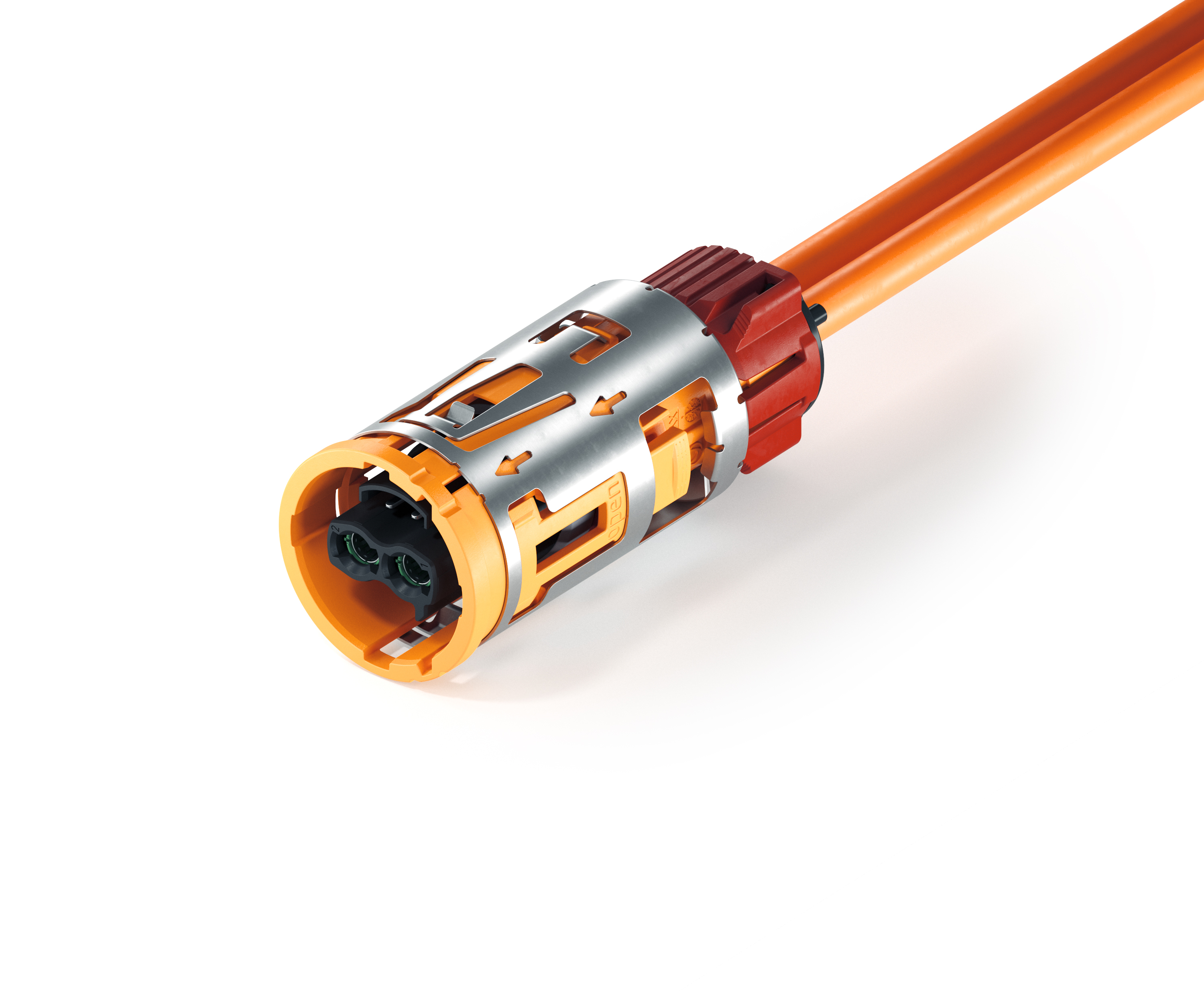

908-115-A01

908-115-A01

类  型:
连接器
品  牌:
Hirschmann
颜  色:
产品描述:
HPS40-2 Female EMEA 6mm2 SCC
Product  type:
HPS40-2
Socket  type:
Female
Angle  variant:
180 °
Plug type:
EMEA
Interface  type:
Standard
Contact  carrier coding:
Coding A
Connection  type:
SCC Wire  connection
Number of  HV connections:
2 pol.
HV  connection cross section:
6,0 mm²
HV  connection length:
1000 mm
HV  connection lead-out:
Straight  cutted
HV wire  manufacturer:
Leoni
Operating  condition:
U = 1000  VDC
Ambient  condition:
-40°C to  +140°C
Maximum  current load:
64 A / 80°C  (6,0 mm²)
IP-degree  of protection:
IPXXD  (assembled), IPXXB (disassembled)
EMC:
>70 dB  (10 KHz to 5 MHz)
Shielded  area:
360°  circumferential
Shield  contact resistance:
2mΩ
Vibration  strength class:
According  to LV 215
HVIL  connection cross section:
Blade  terminal
Number of  HVIL connections:
2 pol.
HVIL  connection lead-out:
Blade  terminal
HVIL  connection length:
Blade  terminal
